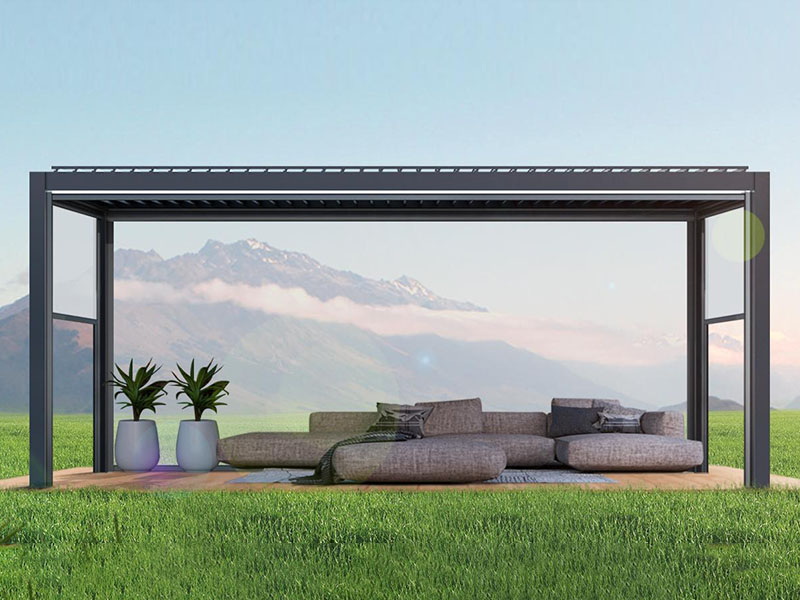

175‑Type Aluminium Alloy Shutter Pergola

Product Introduction

175‑type louvered pergola is a new‑generation aluminum outdoor canopy. It features sun‑shading, heat‑insulation, rain‑proof and wind‑resistant performance. The adjustable louvers can rotate up to 90 degrees. Fully‑closed blades block light and rain completely, resisting wind speed up to 100km/h. Equipped with an integrated invisible drainage system. It supports manual or electric operation. Optional accessories include LED light strips, ceiling fans, wind‑proof roller blinds and more, to build a comfortable multi‑functional outdoor living space.

Core Advantages

1. 90° Max Opening Angle

Adjust light intake and ventilation freely by adjusting louver angles.

2. Double‑layer Louver With Flume

Rainwater flows from blade flumes into the internal gutter system.

3. Invisible Full Drainage System

Rainwater passes through top gutters, flows inside columns and drains out from ground outlets. Double‑drainage design handles heavy rainfall efficiently.

4 .High Snow‑load Capacity

Constructed of 6063 aluminum alloy. Snow load capacity reaches 100 kg/㎡, stable even under strong wind.

5 High‑density Powder Coating

Anti‑corrosion, rust‑free, maintenance‑free, 20‑year non‑fading performance.

Technical Parameters

‑ Model: 175 type, electric / manual optional

‑ Louver blade: 175×40×1.5 mm, max single blade length 4 m

‑ Column options: 150×150×2.0 mm /optional upgraded 180×180×2.5 mm

‑ Single unit max dimension: 5 m × 4 m. Large sizes available via multi‑set splicing.

‑ Default standard height: 2.7 m

‑ Available frame colors: dark grey, white, coffee, black

Installation Types

Standard four‑column, wall‑mounted against building wall, column‑free design, multi‑column large‑size assembly, long‑beam splicing, multi‑group combined splicing.

Optional Accessories

LED light strips, ceiling fan‑lamps, surrounding zipper wind‑proof roller blinds, Roman columns, exterior gutters, glass panels, decorative grilles, rain‑wind sensors, intelligent control modules, heaters, pillar lamps etc.

Application Scenarios

Villa courtyard, garden, terrace & balcony, swimming pool area, homestay, outdoor restaurant, leisure pavilion, carport, commercial outdoor lounge space.
